Universal Condensers

•Universal condensers are produced in capacities between 18 kW – 763 kW
•Single row condensers exist up to 4 fans; two rows are up to 12 fans.
•Two rows condensers have two refrigerant circuit.



Environmentally Friendly

Certificated Products

Energy Saving

Tag: Universal Condensers, water cooled condensers, air cooled condensers

Share:

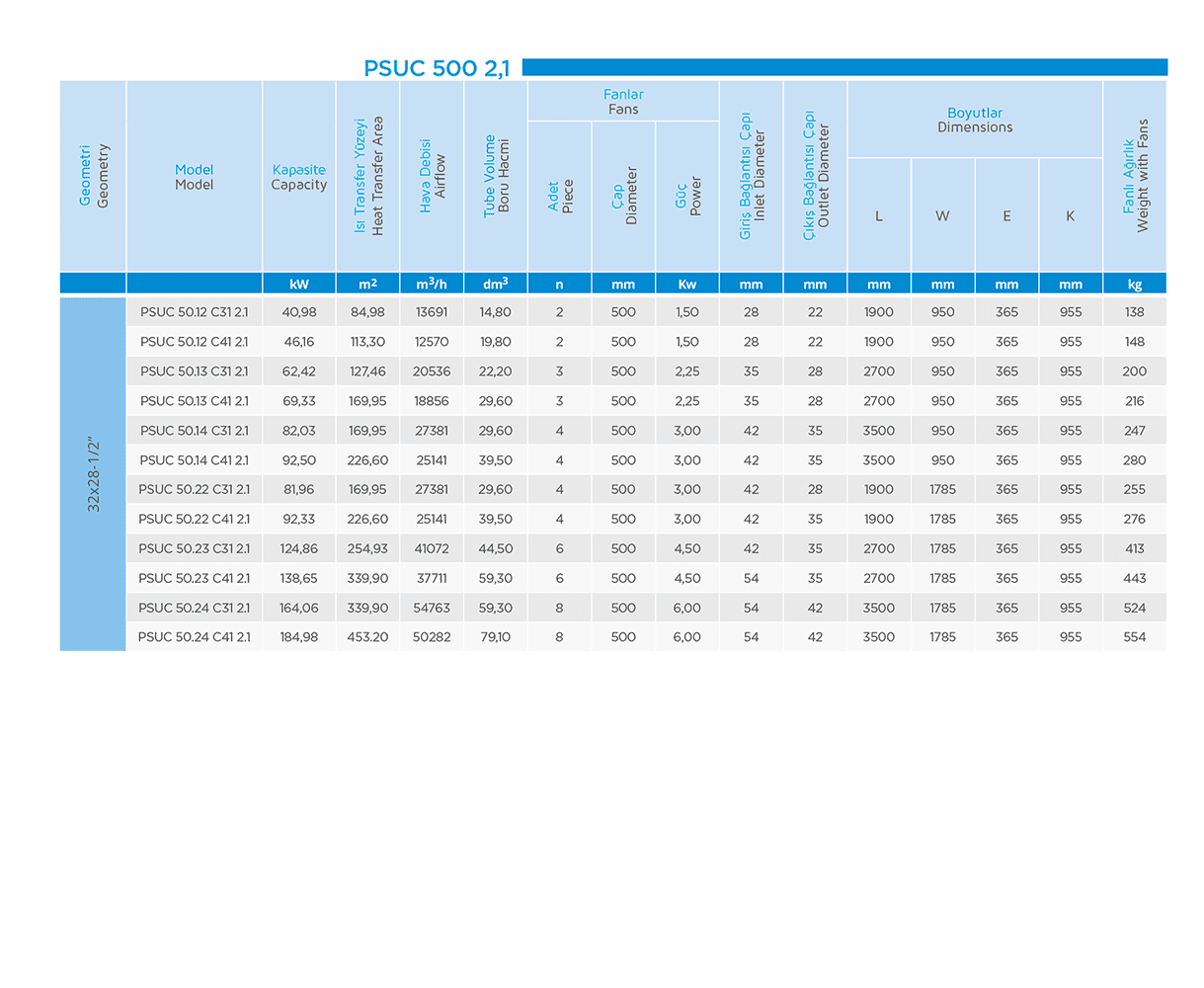

Nominal catalog capacities are calculated for R404A refrigerant as at Δt=15K temperature diference.

  • 1

    Can work with vertical and horizontal use

  • 2

    High efficiency aluminum fin

  • 3

    2,1 – 2,5 mm fin spacings

  • 4

    The copper pipes in 3/8’’-1/2’’ in diameters

  • 5

    Can work with R 404A, R 507A, R 22, R 134A and R 407C gases

  • 6

    Pressure test with 35-bar

  • 7

    HACCP hygiene certificate

  • 7

    Delivery with pressurized nitrogen



  • 1

    Hot-dip galvanized sheet

  • 2

    Corrosive and permanent electrostatic powder paint (RAL 7047)

  • 3

    Height adjustable legs

  • 4

    Collector and hairpin protection

    • 1

      Energy-efficient and silent running fans

    • 2

      The fan motors are equipped with insulation class B or F, protection class IP54

    • 3

      Electrical features can produce with single or three-phase
