Twin Flow Evaporator

Twin flow evaporators are produced in capacities between 1 kW and 50 kW



Environmentally Friendly

Certified Products

Energy Saving

Tag: Twin Flow Evaporator, Heat Exchangers

Share:


Coil Specifications


*Optionally, produced with epoxy coated aluminum fins and stainless steel pipe

  • 1

    High efficiency aluminum fins

  • 2

    4-6-8 mm fin spacings

  • 3

    1/2" copper pipe

  • 4

    Can work with R 404A, R 507A, R407C and R 134a gases

  • 5

    Leakage test with 35-bar

  • 6

    Shipping with pressurized nitrogen



Optionally, produced with epoxy coated aluminum fins and stainless steel pipe

* Optionally, manufactured with stainless casing

  • 1

    Hot-dip galvanized sheet

  • 2

    Anti-rust and permanent electrostatic powder paint (RAL 7047)

  • 3

    Hinged drain tray,

  • 4

    Easily removed side covers by loosening the connection screw

  • 5

    Ceiling mounting brackets

* Optionally fans can be equipped with three phase motors
* The power and current values given in the catalog are nominal values.:

  • 1

    Energy-efficient and silent running fans

  • 2

    The fan motors are equipped with insulation class B or F, protection class IP44 or IP54

E1 type heating resistor is used for 0°C and +5°C room temperature range. The resistors are only mounted on the cooling coil.
E2 type heating resistor is used for lower than 0°C room temperature. The resistors are mounted on the coil and on the drain tray..

* Optionally, water defrost (WD) can be made.

  • 1

    E1: Coil electrical defrost onlyt

  • 2

    E2: Coil + drain tray electrical defrost

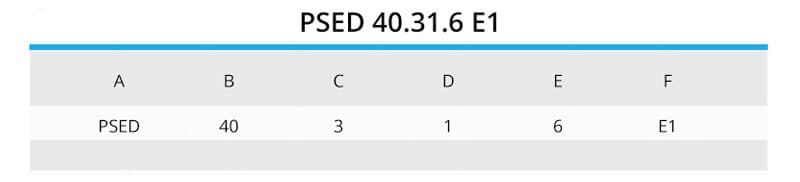

  • A

    Ürün Modeli

  • B

    Fan Çapı, mm (Ø 400)

  • C

    Fan Sayısı

  • D

    Batarya Boyut Numarası

  • E

    Lamel Aralığı (Hatve), mm

  • F

    Rezistans Tipi



  • Örnek Modelleme
