Standard Evaporators

Our cold room evaporators which are capable to provide small and middle ranges of cooling capacities are able to respond the demands of commercial refrigerations.



Environmentally Friendly

Certified Products

Energy Saving

Tag: Standard Evaporators

Share:

Ürün Özelikleri

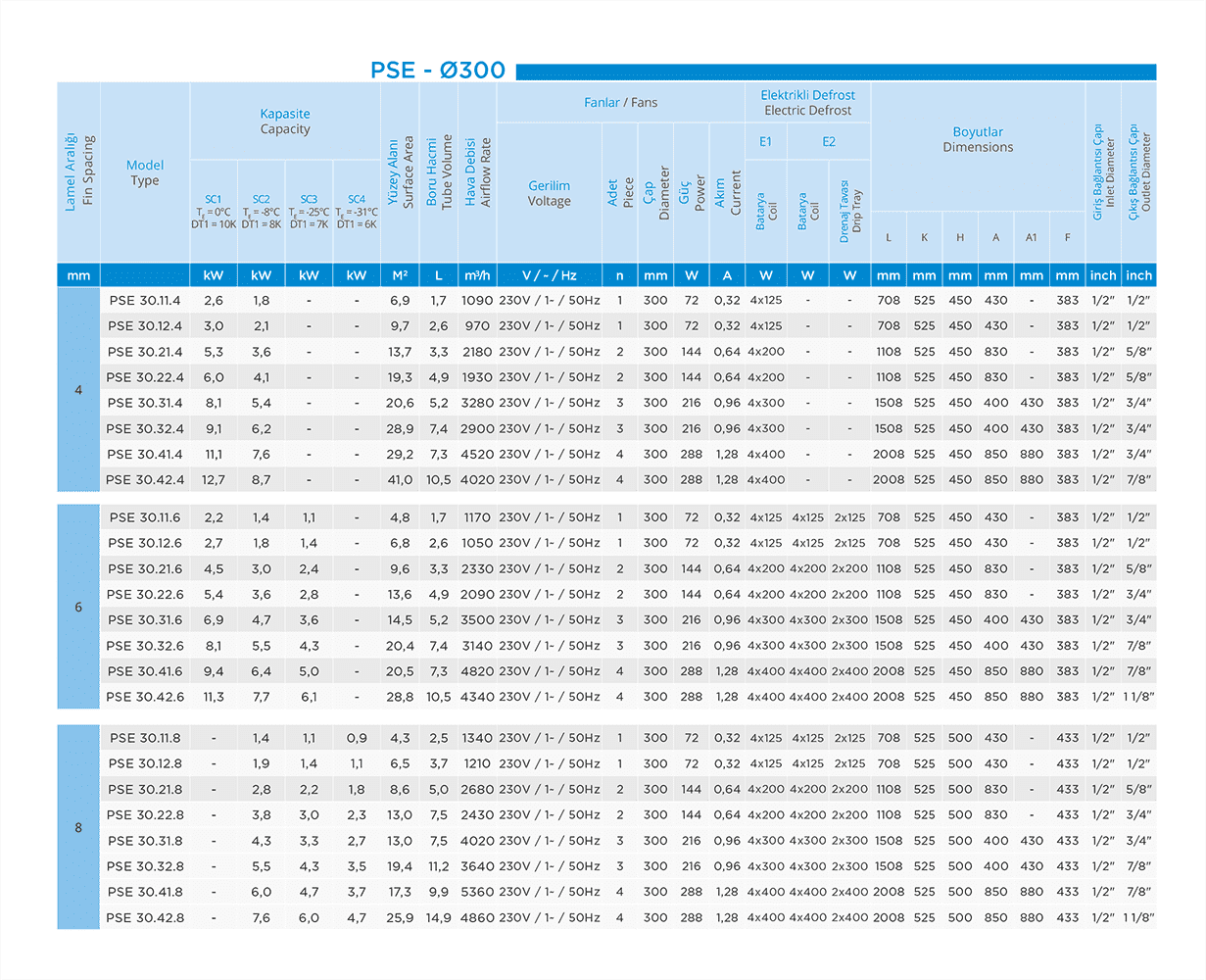

Standard evaporators are produced in capacities between 1 kW and 50 kW.

  • 1

    High efficiency aluminum fins

  • 2

    4-6-8-10-12 mm fin spacings

  • 3

    3/8’’ - 1/2" - 5/8’’ copper pipe

  • 4

    Can work with R 404A, R 507A, R407C and R 134a gases

  • 5

    Leakage test with 35-bar

  • 6

    Shipping with pressurized nitrogen



Optionally, produced with epoxy coated aluminum fins and stainless steel pipe

* Optionally, manufactured with stainless casing

  • 1

    Hot-dip galvanized sheet

  • 2

    Anti-rust and permanent electrostatic powder paint (RAL 7047)

  • 3

    Hinged drain tray,

  • 4

    Easily removed side covers by loosening the connection screw

  • 5

    Ceiling mounting brackets

* Opsiyonel olarak üç fazlı motor kullanılabilmektedir.
* Katalogda verilen güç ve akım değerleri nominal değerlerdir.:

  • 1

    Energy-efficient and silent running fans

  • 2

    The fan motors are equipped with insulation class B or F, protection class IP44 or IP54

E1 type heating resistor is used for 0°C and +5°C room temperature range. The resistors are only mounted on the cooling coil.
E2 type heating resistor is used for lower than 0°C room temperature. The resistors are mounted on the coil and on the drain tray.

Optional water defrost (WD) can be made.

  • 1

    E1: Coil electrical defrost onlyt

  • 2

    E2: Coil + drain tray electrical defrost

  • E3

    E3: Coil + drain tray + electric fan defrost

  • A

    Ürün Modeli

  • B

    Fan Çapı, mm (Ø 400)

  • C

    Fan Sayısı

  • D

    Batarya Boyut Numarası

  • E

    Lamel Aralığı (Hatve), mm

  • F

    Rezistans Tipi



  • Örnek Modelleme
