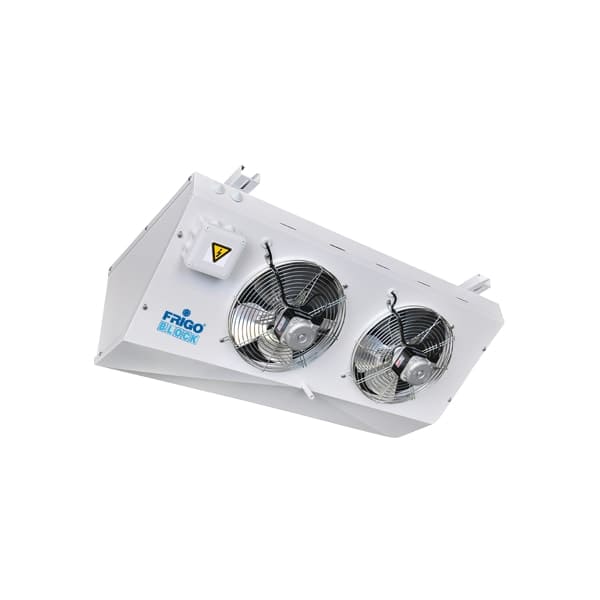

Ceiling Type Evaporators

Twin flow evaporators are produced in capacities between 0,7kW and 16 kW.



Environmentally Friendly

Certified Products

Energy Saving

Tag: Ceiling Type Evaporators,

Share:

Coil Features

Twin flow evaporators are produced in capacities between 0,7kW and 16 kW.

  • 1

    High Efficient Aluminium Fins

  • 2

    4-6-8mm fin spacings

  • 3

    The copper tubes in ½’’ in diameters

  • 4

    Working capability with 404A, R 507A ve R 134A gases

  • 5

    Pressure test at 35 bar

  • 6

    Delivery with positive pressurised nitrogen



They might be covered Optionally with epoxy cover aluminium fin and stainless steel pipe

* Optionally, manufactured with stainless steel casing.

  • 1

    Hot-dip galvanized sheet

  • 2

    Corrosive and permanent electrostatic powder paint (RAL 7047)

  • 3

    Hinged drain tray,

  • 4

    Easily removed side covers by loosening the connection screws

  • 5

    Ceiling mounting brackets

*Optionally fans can be equipped with three phase motors
*The power and current values given in the catalog are nominal values:

  • 1

    Energy-efficient and silent running fans

  • 2

    The fan motors are equipped with insulation class B or F, protection class IP44 or IP54

E1 type resistance heaters are used for the range of 0ºC and +5ºC. Resistance heaters are only mounted on the body of the cooling coil.
E2 Resistance heaters can be used for the degrees below 0. Resistance heaters are mounted on the body of the cooling coil and drain pan

Optionally, water defrost (WD) can be supplied.

  • 1

    E1: Coil Electrical Defrost Only

  • 2

    E2: Coil + drain tray electrical defrost
